How to use XRDP

Install XRDP Package from Ubuntu Repository. Do this either with command
```
sudo apt-get install xrdp
```
or with Synaptic or any other package manager software/method.

Install the xfce4 Desktop environment. I was succeed with this desktop environment and fail with others. You are free to test other options...

sudo apt-get install xfce4

To verify desktop environment installed on your system you can try

fulmanp@ubuntu:~$ ls -l /usr/bin/*session
-rwxr-xr-x 1 root root  10456 mar  4  2013 /usr/bin/ck-launch-session
-rwxr-xr-x 1 root root 235904 mar 26  2015 /usr/bin/gnome-session
-rwxr-xr-x 1 root root 221736 sty  7  2015 /usr/bin/lxsession
-rwxr-xr-x 1 root root    594 gru 22  2013 /usr/bin/openbox-session
-rwxr-xr-x 1 root root 182504 mar 21  2014 /usr/bin/xfce4-session

Configure XRDP to use XFCE desktop environment

echo xfce4-session >~/.xsession
sudo service xrdp restart

Test XRDP connection. To do this, find the ip address of the linux machine you are working on, for example with a command
```
fulmanp@ubuntu:~$ hostname -I
192.168.48.159
```

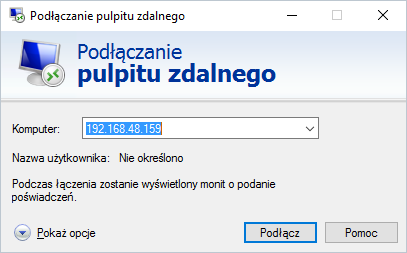

Switch to a windows machine, start Remote Desktop Connection (Podłączanie pulpitu zdalnego) and enter the ip address/name of the linux machine
You should see the login screen of XRDP presented to you

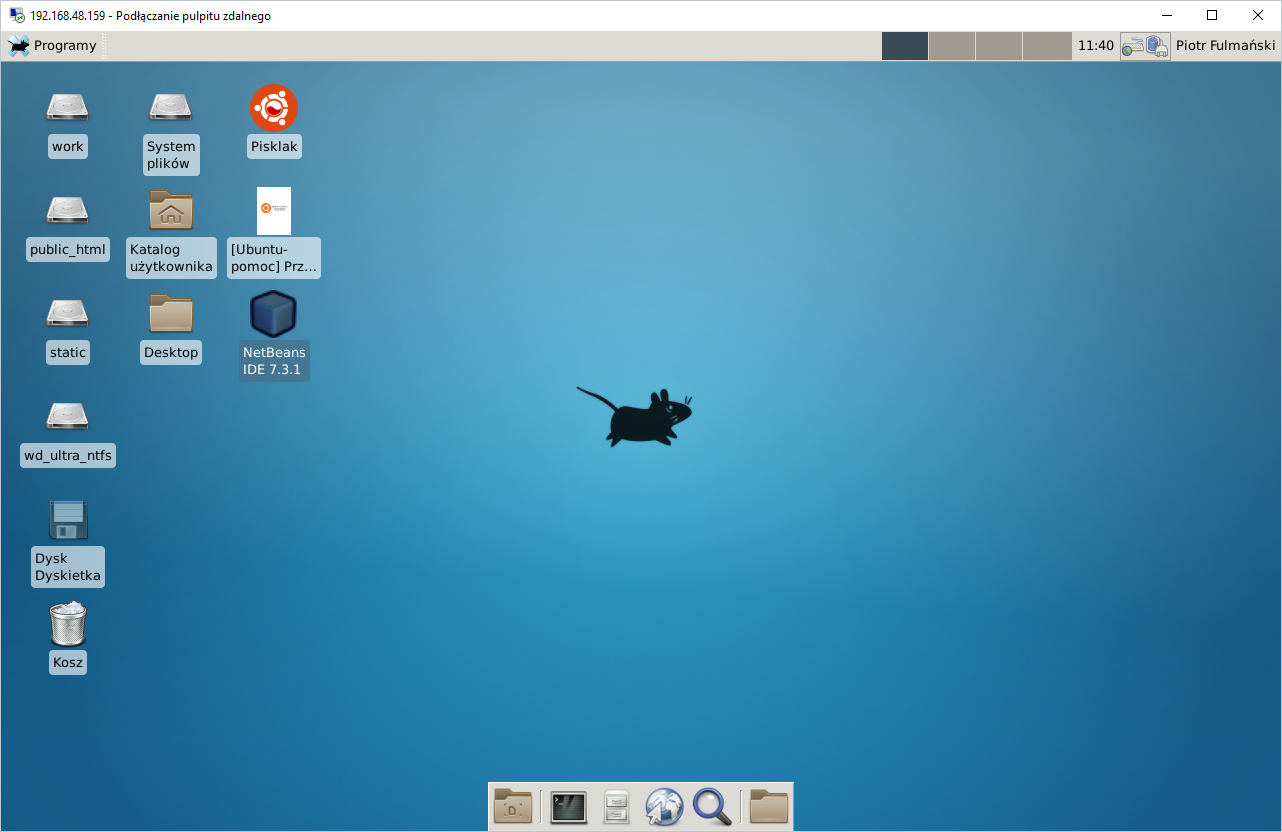

Enter your username and password and confirm with pressing OK button. If everything is configured correctly, you should see a XFCE desktop loading

and you should be able to work on remote machine.
Notice that if connected to an XRDP session, logging out of the xfce4 desktop will not terminate the XRDP remote session, but rather it will leave your session in a state of limbo. We can verify this printing contents of
```
/tmp/.X11-unix
```
directory before login, during a session and after a logout
```
fulmanp@ubuntu:/tmp/.X11-unix$ ls -l
razem 0
srwxrwxrwx 1 root root 0 maj 16 11:26 X0
fulmanp@ubuntu:/tmp/.X11-unix$ ls -l
razem 0
srwxrwxrwx 1 root    root    0 maj 16 11:26 X0
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 14:57 X12
fulmanp@ubuntu:/tmp/.X11-unix$
```
As you can see, in this case, a directory X12 was created and wasn't removed after logout. In order to kill the connection without restarting Ubuntu, the following must be done:
1. The user session must be deleted. Navigate to the /tmp/.X11-unix directory. Always there will be a root session running on X0. Remember do not kill this session. Our limbo session, should appear as something similar to X12. To kill the session, type the following
```
sudo rm X12
```
2. All processes running for that user must be killed. To view running processes for a user account, you can type for example
```
top -U ‘username’
```
  or
```
fulmanp@ubuntu:~$ ps -u fulmanp
```
  There are many ways you can kill them:
  - Use hard kill (SIGKILL)
```
kill -9 processname
```
  - or do soft kill (SIGTERM)
```
kill -15 processname
```
  - Alternatively to do this faster you can try pkill or killall
    - The pkill command works in almost exactly the same way as kill, but it operates on a process name instead
```
pkill [processname]
```
      or username
```
pkill -u [username]
```
    - If you would like to send a signal to every instance of a certain process, you can use the killall
```
killall [processname]
```
      or
```
killall --user [username]
```

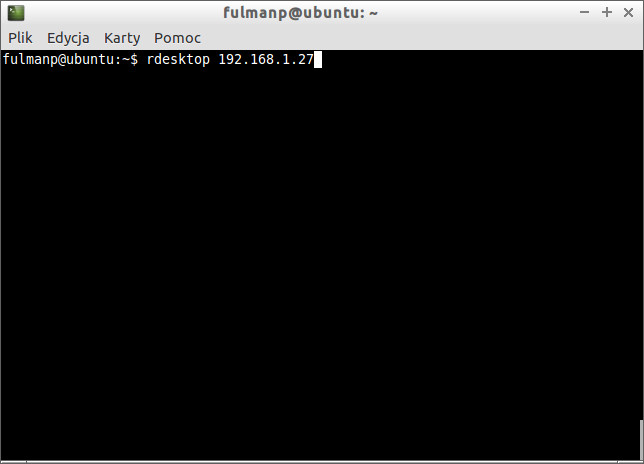

XRDP from linux to linux

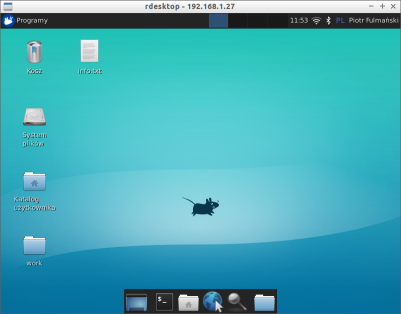

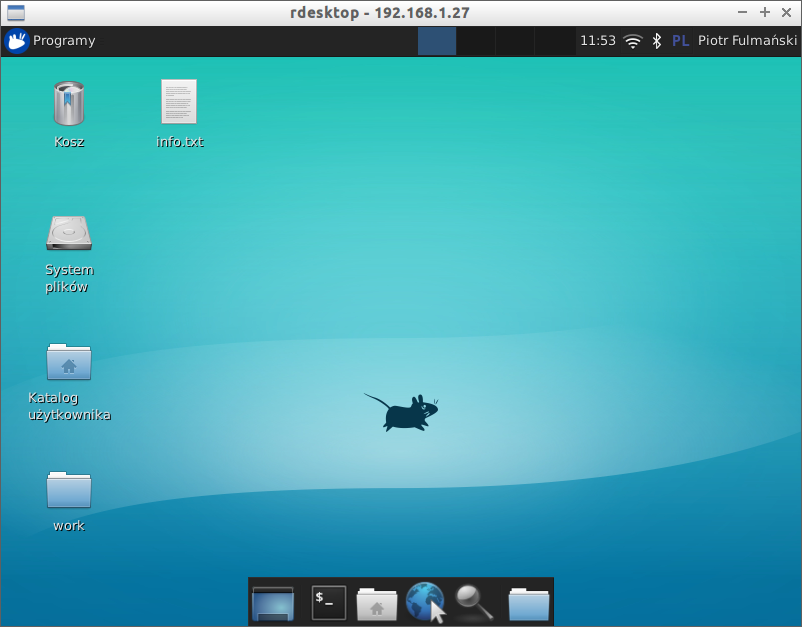

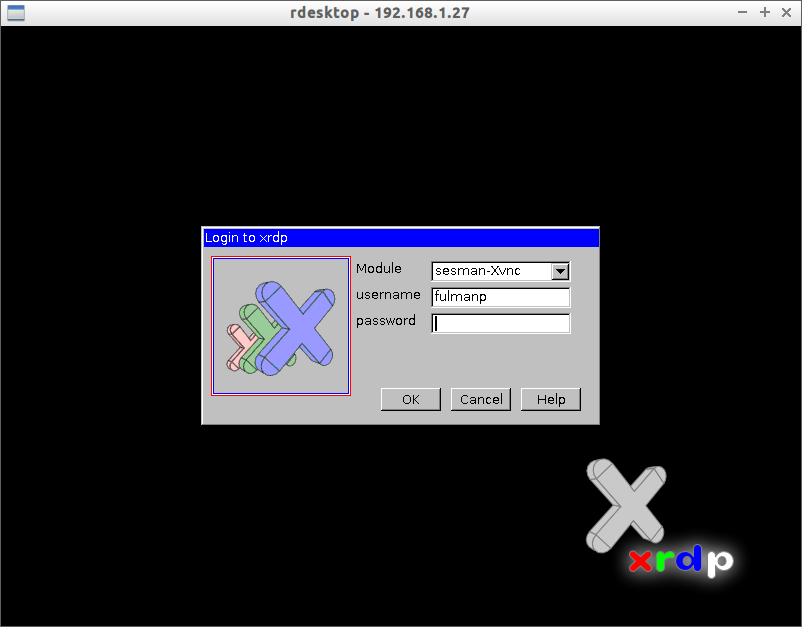

Connecting with XRDP from linux to linux is very similar - compare following screens

Reconnect to the same session

As we mentioned earlier, every time we connect through XRDP we get a new session which is not what we want in most cases. First, login

and check the /tmp/.X11-unix folder

fulmanp@ubuntu:/tmp/.X11-unix$ ls -l
razem 0
srwxrwxrwx 1 root    root    0 maj 16 20:50 X0
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:29 X10

Disconnect from our running session, login again

and check the /tmp/.X11-unix folder

fulmanp@ubuntu:/tmp/.X11-unix$ ls -l
razem 0
srwxrwxrwx 1 root    root    0 maj 16 20:50 X0
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:29 X10
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:36 X11

To change this do the following.

Edit xrdp.ini file located under the /etc/xrdp directory
```
sudo gedit /etc/xrdp/xrdp.ini
```
Locate the section [xrdp1] and replace the line
```
port=-1
```
with the line
```
port=ask-1
```
Restart the XRDP service
```
sudo service xrdp restart.
```

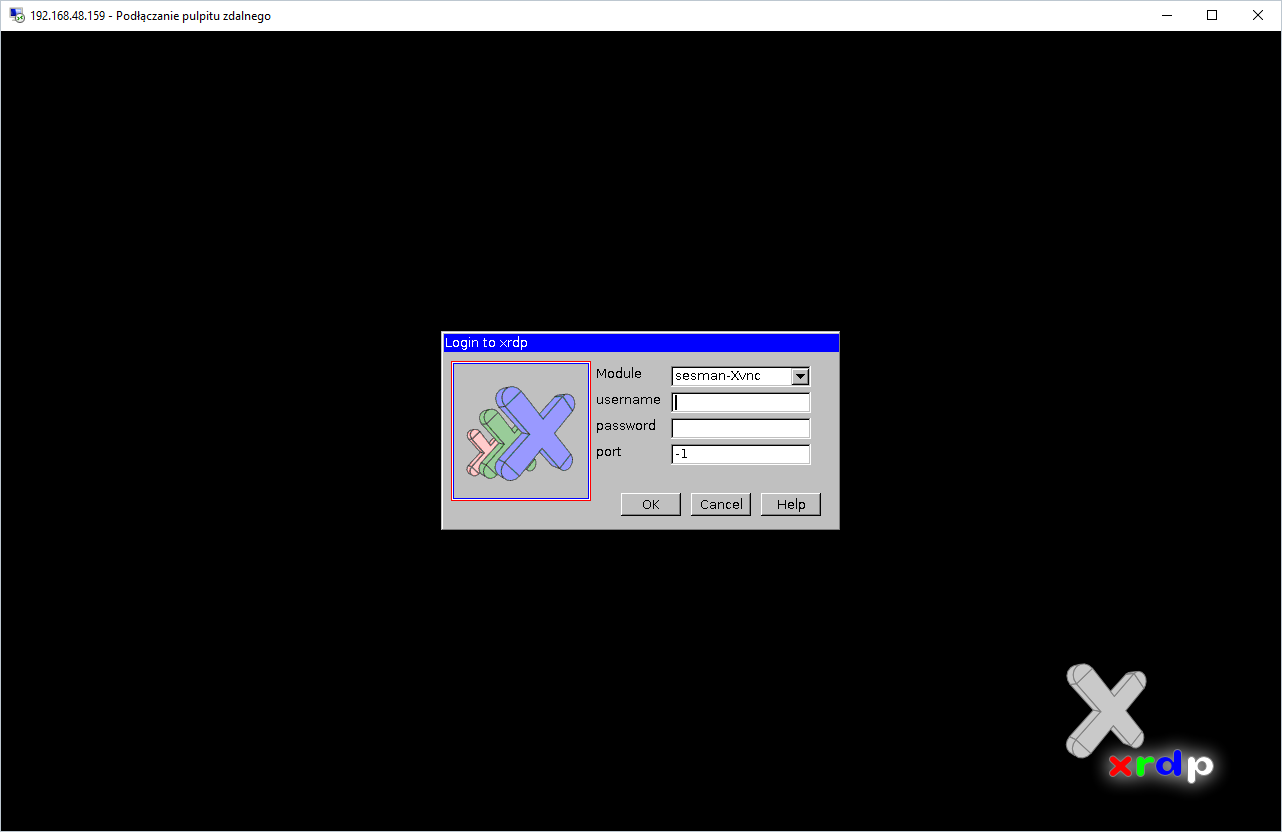

Start remote desktop client as previously. You will see that the XRDP login screen has an additional field called port.

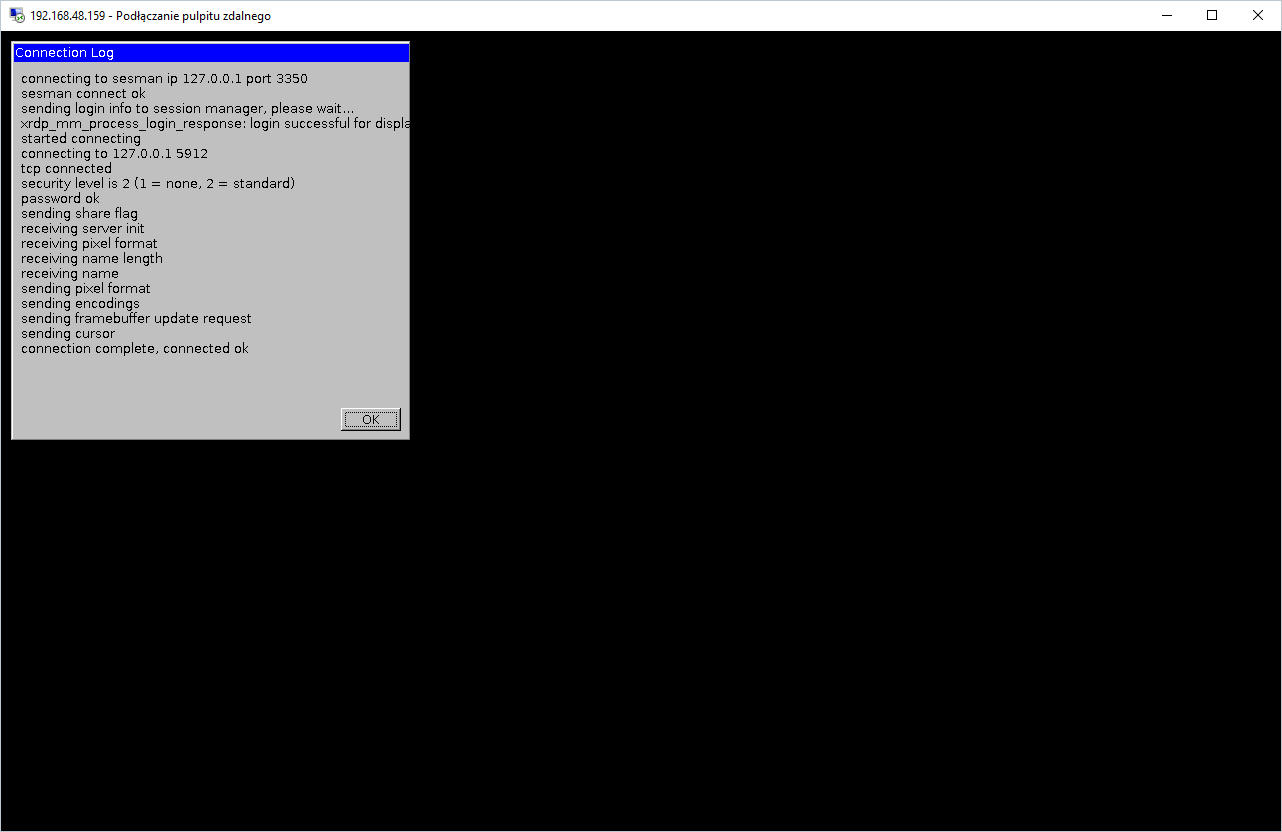

If this is your first connection, leave the default value in the port field (i.e. -1), you will be then connecting through XRDP to your remote machine using a specified port that can be seen on the login process dialog box. Important: remember this port number - you will need it while reconnecting.

Again, new session has been started

fulmanp@ubuntu:/tmp/.X11-unix$ ls -l
razem 0
srwxrwxrwx 1 root    root    0 maj 16 20:50 X0
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:29 X10
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:36 X11
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:48 X12

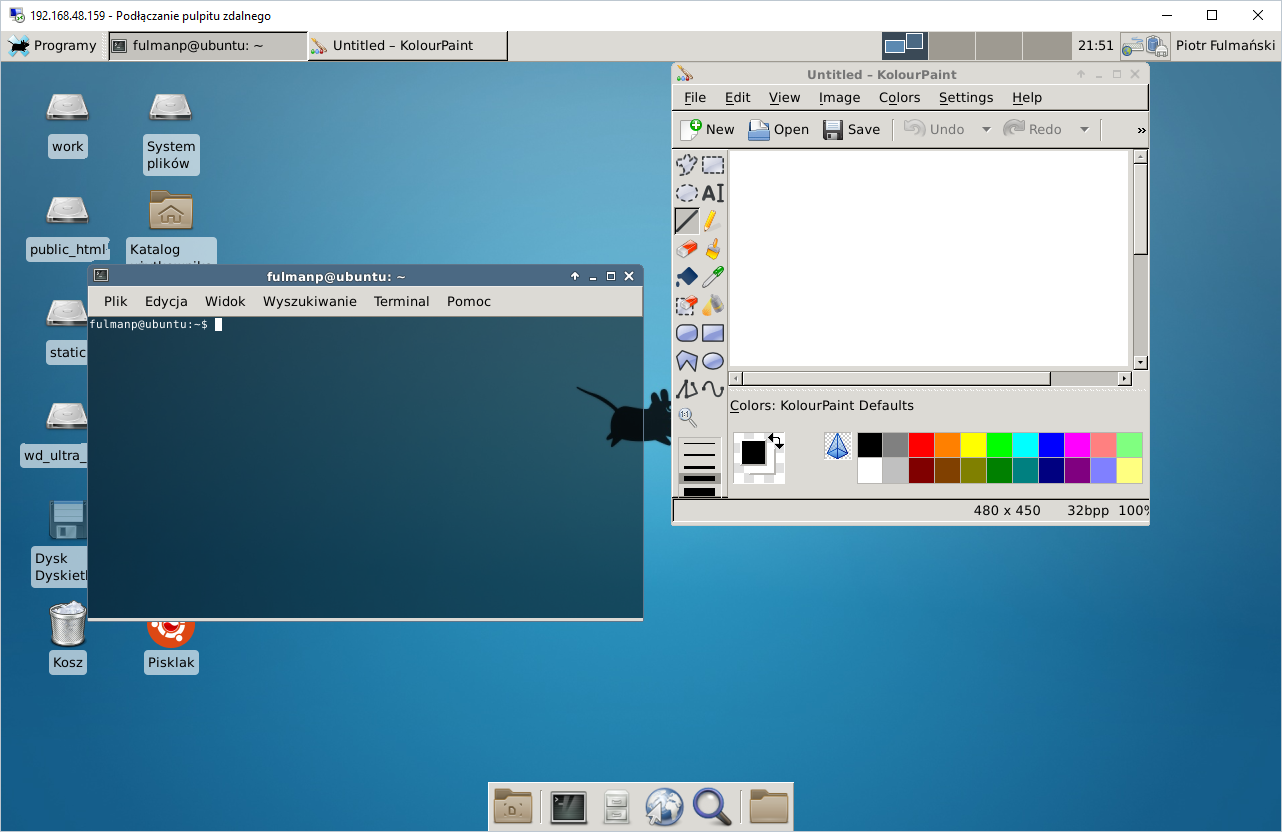

Open some applications

and disconnect from our running session.

Try to (re)connect. You will have to specify the same port as your first connection

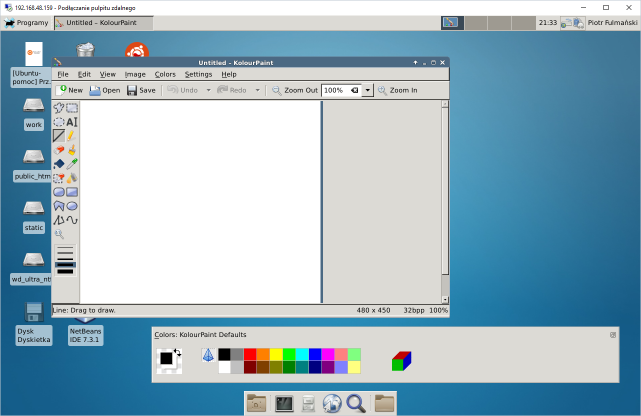

and you should see the same screen as you left it.

fulmanp@ubuntu:/tmp/.X11-unix$ ls -l
razem 0
srwxrwxrwx 1 root    root    0 maj 16 20:50 X0
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:29 X10
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:36 X11
srwxrwxrwx 1 fulmanp fulmanp 0 maj 16 21:48 X12
